23.0240-24 | Stäubli Electrical Connectors

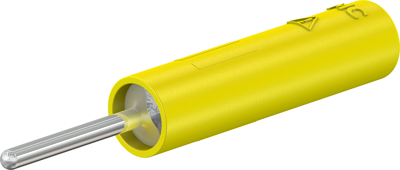

Counting test adapter, connecting pin 1.5 mm to 4 mm socket, yellow, CAT II, 23.0240-24
Unit Price (€ / pc.)
1.2019 € *
Available: 80 pcs.
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
25 pcs.
1.1543 €
100 pcs.
1.0115 €
500 pcs.
0.8806 €
1000 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale
Counting test adapter, 23.0240-24, Stäubli Electrical Connectors
Solid, especially suitable for the screw connection to electricity meter clips. Can be bent once to 90°. Ø 4 mm rigid socket in insulator, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated category | CAT II | |
| Rated current | 20 A | |
| Version | counting test adapter | |
| Site (1) | connecting pin 1.5 mm | |
| Colour | yellow | |
| Site (2) | 4 mm socket | |
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 25 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
