32.1198-15023 | Stäubli Electrical Connectors
Adapter measuring lead, 1.0 mm², 1 kV, 19 A, 4 mm safety plug to MC4 jack, 1.5, 32.1198-15023
Unit Price (€ / pc.)
10.8052 € *
Available: 6 pcs.
Total Price:
10.81 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8052 €
5 pcs.
10.1388 €
10 pcs.
9.4605 €
25 pcs.
8.7822 €
50 pcs.
8.1039 €
*incl. VAT plus shipping costs
Subject to prior sale

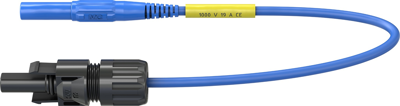

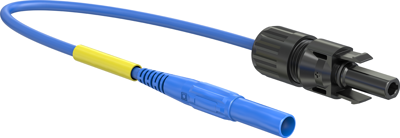

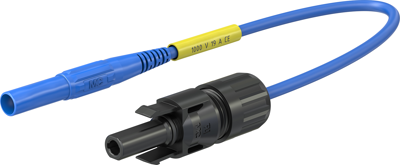

Adapter cable socket, 32.1198-15023, Stäubli Electrical Connectors
One end equipped with PV connector, the other end with Ø 4 mm safety plug for measuring instruments with Ø 4 mm safety sockets ensuring safe current and voltage measuring on PV-modules and systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 1 kV | |
| Cable cross-section | 1.0 mm² | |
| diameter | 4 mm | |
| Version | adapter measuring lead | |
| Connection (2) | MC4 jack | |
| Connection (1) | 4 mm safety plug | |
| Cable length | 1.5 m | |
| Rated current | 19 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
