32.0093P0001-UR | Stäubli Electrical Connectors
MC4-Evo 2 plug, 10 mm², cable Ø 6.4 to 8.4 mm, 1.5 kV, 69 A, 32.0093P0001-UR
This item is no longer available.
As an alternative, we recommend the following item:
MC4-Evo 2 plug, 10 mm², cable Ø 6.4-8.4 mm, 1.5 kV, 69 A, 32.0325P0001
Order No.: 37F2045
Manufacturer: Stäubli Electrical Connectors
per pc. 3.1892 € *

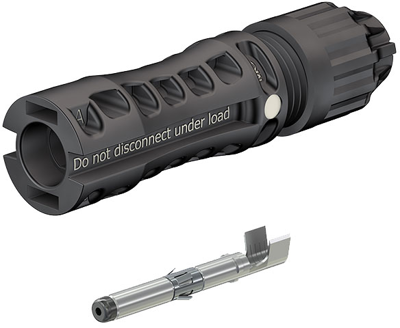

Photovoltaic coupler, 32.0093P0001-UR, Stäubli Electrical Connectors
MULTILAM Technology has proven the quality and durability and this coupler is suited for all climatic environments thanks to resistance to UV and ammonia.
It is available as a field and preassembled connector, standard crimping tools can be used.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | MC4-Evo 2 plug | |
| Contact connection | crimp terminal open | |
| Rated voltage | 1.5 kV | |
| Cable cross-section | 10 mm² | |
| diameter | 4 mm | |
| Rated current | 69 A | |
| Cable diameter | 6.4 to 8.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
