32.0084P0001-UR | Stäubli Electrical Connectors

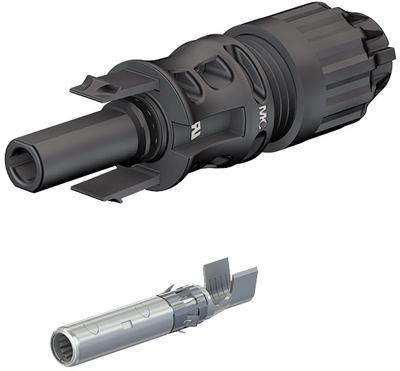

MC4-Evo 2 jack, 2.5 mm², cable Ø 6.4 to 8.4 mm, 1.5 kV, 39 A, 32.0084P0001-UR

Order No.: 37F402

EAN: 4099889883343

MPN:

32.0084P0001-UR

PV-KBT4-EVO 2/2,5II-UR

Image may differ

Key Specification:

Version MC4-Evo 2 jack

diameter 4 mm

Cable cross-section 2.5 mm²

Cable diameter 6.4 to 8.4 mm

Rated voltage 1.5 kV

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

MC4-Evo 2 jack, 2.5 mm², cable Ø 6.4-8.4 mm, 1.5 kV, 39 A, 32.0314P0001

Order No.: 37F2034

Manufacturer: Stäubli Electrical Connectors

per pc. 3.7842 € *

Go to product

*incl. VAT plus shipping costs

Description

Coupling jack, 32.0084P0001-UR, Stäubli Electrical Connectors

MULTILAM Technology, has proven the quality and durability several 100 million times since 2004. Suited for all climatic environments thanks to resistance to UV, ammonia, and high IP class (IP68). Mating compatibility with MC4 connector family.

Technical specifications

Filter	Property	Value
	Contact connection	crimp terminal open
	Cable diameter	6.4 to 8.4 mm
	Rated current	39 A
	Version	MC4-Evo 2 jack
	diameter	4 mm
	Rated voltage	1.5 kV
	Cable cross-section	2.5 mm²
