32.0083P0001-UR | Stäubli Electrical Connectors
MC4-Evo 2 plug, 2.5 mm², cable Ø 4.7 to 6.4 mm, 1.5 kV, 39 A, 32.0083P0001-UR
This item is no longer available.
As an alternative, we recommend the following item:
MC4-Evo 2 plug, 2.5 mm², cable Ø 4.7-6.4 mm, 1.5 kV, 39 A, 32.0311P0001
Order No.: 37F2031
Manufacturer: Stäubli Electrical Connectors
per pc. 2.8679 € *

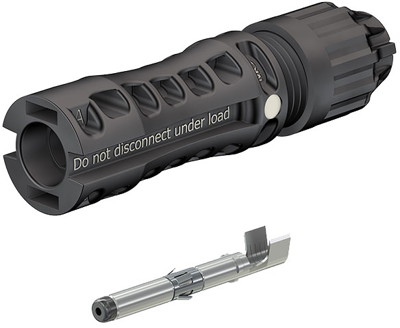

Photovoltaic coupler, 32.0083P0001-UR, Stäubli Electrical Connectors
MULTILAM Technology has proven the quality and durability and this coupler is suited for all climatic environments thanks to resistance to UV and ammonia.
It is available as a field and preassembled connector, standard crimping tools can be used.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 39 A | |
| Contact connection | crimp terminal open | |
| diameter | 4 mm | |
| Cable diameter | 4.7 to 6.4 mm | |
| Rated voltage | 1.5 kV | |
| Version | MC4-Evo 2 plug | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
