32.0082P0001-UR | Stäubli Electrical Connectors

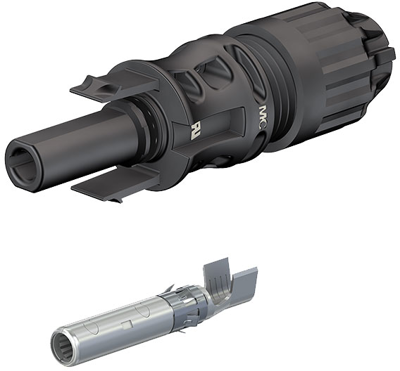

MC4-Evo 2 jack, 2.5 mm², cable Ø 4.7 to 6.4 mm, 1.5 kV, 39 A, 32.0082P0001-UR
This item is no longer available.
As an alternative, we recommend the following item:
MC4-Evo 2 jack, 2.5 mm², cable Ø 4.7-6.4 mm, 1.5 kV, 39 A, 32.0310P0001
Order No.: 37F2030
Manufacturer: Stäubli Electrical Connectors
per pc. 3.7842 € *
Photovoltaic coupler, 32.0082P0001-UR, Stäubli Electrical Connectors
MULTILAM Technology has proven the quality and durability and this coupler is suited for all climatic environments thanks to resistance to UV and ammonia.
It is available as a field and preassembled connector, standard crimping tools can be used.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.5 mm² | |
| diameter | 4 mm | |
| Cable diameter | 4.7 to 6.4 mm | |
| Version | MC4-Evo 2 jack | |
| Rated current | 39 A | |
| Contact connection | crimp terminal open | |
| Rated voltage | 1.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
