32.0076P0001-UR | Stäubli Electrical Connectors
MC4 surface mount socket, 1.5-2.5 mm², 1.25 kV, 17.5 A, 32.0076P0001-UR
Unit Price (€ / pc.)
4.4863 € *
Available: 75 pcs.
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4863 €
10 pcs.
4.2126 €
50 pcs.
3.9270 €
100 pcs.
3.6533 €
500 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

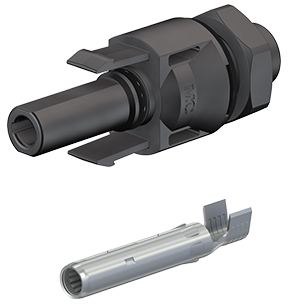

Female receptacle, 32.0076P0001-UR, Stäubli Electrical Connectors
MC4 panel-receptacle connector is the interface between an inverter or junction box or junction and a branch cable. Mounting directly by means of screw thread or in perforated plate with plastic nut. Protection class IP68 guarantees the highest connection safety. Mating compatibility with MC4 connector family also Includes sealing element for enclosure.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Contact connection | crimp terminal open | |
| Rated current | 17.5 A | |
| Rated voltage | 1.25 kV | |
| Version | MC4 surface mount socket | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
