32.0023P0001-UR | Stäubli Electrical Connectors
MC4-Evo 2 surface mount plug, 4.0-6.0 mm², 1.5 kV, 42 A, 32.0023P0001-UR
Order No.: 37F419
EAN: 4099889883510
MPN:
32.0023P0001-UR
PV-ADS4-EVO 2/6-UR
This item is no longer available.
As an alternative, we recommend the following item:
MC4-Evo 2 surface mount plug, 4.0-6.0 mm², 1.5 kV, 42 A, 32.0347P0001
Order No.: 37F2049
Manufacturer: Stäubli Electrical Connectors
per pc. 3.6414 € *

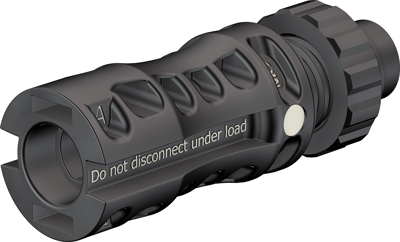

Male receptacle, 32.0023P0001-UR, Stäubli Electrical Connectors
MC4-Evo 2 panel-receptacle connector is the interface between the inverter or the distributor housing and string. Assembly directly via the threads or in the perforated plate with the plastic nut. Thanks to the D shape, the threaded connection is secured against turning. This degree of protection (IP68) guarantees highest connection safety, fast and clean connection with preassembled flat seal. Plug compatible with the original MC4 plug connector family.
Technical specifications
| Rated current | 42 A | |
| diameter | 4 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 4.0-6.0 mm² | |
| Version | MC4-Evo 2 surface mount plug | |
| Rated voltage | 1.5 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
