32.0018 | Stäubli Electrical Connectors

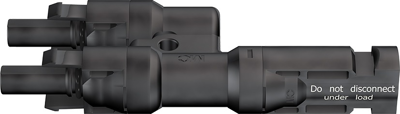

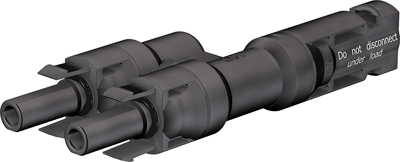

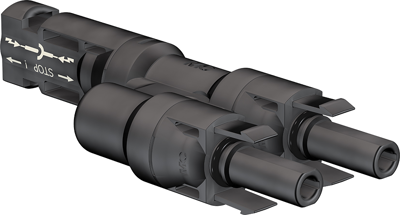

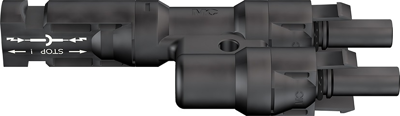

Branch socket, 1.5 kV, 50 A, 2 x MC4 jack to MC4 plug, 32.0018
Order No.: 37F2091
EAN: 4099891692209
MPN:
32.0018
PV-AZB4
This item is no longer available.
As an alternative, we recommend the following item:
Branch socket, 1.5 kV, 60 A, 2 x MC4-Evo 2 jack to MC4-Evo 2 plug, 32.0196
Order No.: 37F2093
Manufacturer: Stäubli Electrical Connectors
per pc. 8.8774 € *
Socket, 32.0018, Stäubli Electrical Connectors
For a safe and simple parallel or serial parallel connection of PV-modules. Pluggable with single-pole PV-cable coupler MC4. Unmated connections must be protect by sealing caps.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Connection (2) | MC4 plug | |
| Rated voltage | 1.5 kV | |
| Connection (1) | 2 x MC4 jack | |
| Version | branch socket | |
| Rated current | 50 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
