24.0053-23 | Stäubli Electrical Connectors
Jumper, pitch 2.54 mm, 10 A, gold-plated, blue, 24.0053-23
Unit Price (€ / pc.)
5.6168 € *
Available: 604 pcs.
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
5.2479 €
100 pcs.
4.8790 €
500 pcs.
4.4982 €
1000 pcs.
4.1293 €
*incl. VAT plus shipping costs
Subject to prior sale

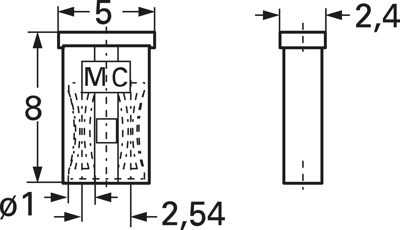

Short-circuit jumper, 24.0053-23, Stäubli Electrical Connectors
With 1.0 mm sockets. Made of hard-copper alloy, gold-plated; Insulation: PA. Rated current: max. 10 A. Operating temperatures: -40 to +80 °C.
Technical attributes (type, socket pitch, color): KB1-2.54/1, 2.54 mm, blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| contact surface | gold-plated | |
| Colour | blue | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
