20.1010-21 | Stäubli Electrical Connectors
Jumper, pitch 14 mm, 60 V, 32 A, nickel-plated, black, 20.1010-21
Unit Price (€ / pc.)
4.8195 € *
Available: 3,121 pcs.
Next delivery: 3,225 pcs. on 2025-09-08
Total Price:
4.82 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8195 €
25 pcs.
4.2483 €
100 pcs.
4.0222 €
500 pcs.
3.8913 €
1000 pcs.
3.6771 €
*incl. VAT plus shipping costs
Subject to prior sale
Short-circuit plug, 20.1010-21, Stäubli Electrical Connectors

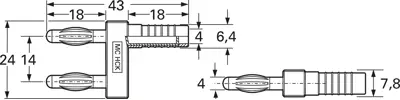

Insulated, Ø 4 mm, made of brass. Equipped with spring-loaded MULTILAM to ensure vibration-proof contacts - ideal use is in the automotive field for test drives and servicing. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 60 V | |
| Rated current | 32 A | |
| Grid | 14 mm | |
| contact surface | nickel-plated | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 25 pieces |
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
