22.1007 | Stäubli Electrical Connectors
Laboratory plug, 1 mm, 30 V, 60 V
Unit Price (€ / pc.)
0.5474 € *
Available: 9,425 pcs.
Next delivery: 6,600 pcs. on 2025-11-13
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4879 €
100 pcs.
0.4284 €
500 pcs.
0.3808 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

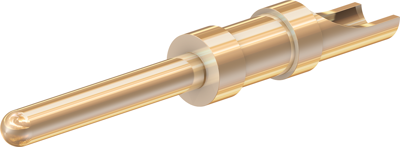

Plug, 22.1007, Stäubli Electrical Connectors
Rigid plug pin with brass solder terminal, gold-plated: Rated voltage: 30 VAC/60 VDC. Rated current: max. 6.0 A. Rated cross-section: 0.25 mm². Cable diameter: up to 1.7 mm.
Type: LS1-S, plug pin.

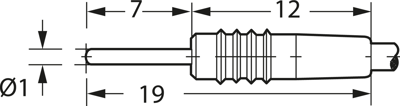

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin diameter | 1 mm | |
| Press-in shaft | round | |
| Length | 7 mm | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
