69.0013 | Stäubli Electrical Connectors

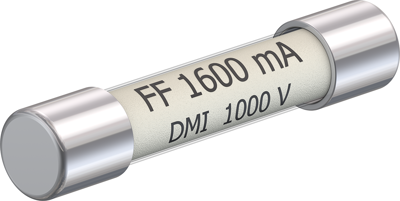

Microfuse 6.3 x 32 mm, 1.6 A, FF, 1 kV (DC), 1 kV (AC), 30 kA breaking capacity, 69.0013
Unit Price (€ / pc.)
   9.7937 €  *
   Available: 14 pcs.
 Total Price:
  9.79 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 9.7937 €
 10 pcs.
 8.6037 €
 50 pcs.
 8.0206 €
 100 pcs.
 7.6755 €
 500 pcs.
 7.2828 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Micro fuse, 69.0013, MULTI-CONT
The 69.0013 is a fuse that can safely break extremely high short-circuit currents. The very low internal resistance permits the measurement of resis-tance and current.
Features
- Cartridge form
- High rated voltage
- High breaking capacity
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 1 kV | |
| diameter | 10.3 mm | |
| Length | 38 mm | |
| Rated current | 1.6 A | |
| Tripping characteristics | FF | |
| Design | 6.3 x 32 mm | |
| Breaking capacity | 30 kA | |
| Version | microfuse | |
| Enclosure | ceramic tube | |
| Rated voltage (DC) | 1 kV |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
