69.0012 | Stäubli Electrical Connectors
Microfuse 6.3 x 32 mm, 500 mA, FF, 1 kV (DC), 1 kV (AC), 30 kA breaking capacity, 69.0012
Unit Price (€ / pc.)
   4.1888 €  *
   Next delivery: 20 pcs. on 2025-11-13
 Total Price:
  4.19 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 4.1888 €
 10 pcs.
 3.6890 €
 50 pcs.
 3.2487 €
 100 pcs.
 3.0940 €
 500 pcs.
 2.9155 €
  *incl. VAT plus shipping costs
  Subject to prior sale

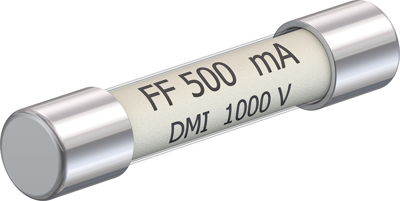

 Micro fuse, 69.0012, MULTI-CONT
The 69.0012 is a fuse that can safely break extremely high short-circuit currents. The very low internal resistance permits the measurement of resis-tance and current.
Features
- Cartridge form
- High rated voltage
- High breaking capacity
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 1 kV | |
| diameter | 6.3 mm | |
| Length | 32 mm | |
| Rated current | 500 mA | |
| Tripping characteristics | FF | |
| Design | 6.3 x 32 mm | |
| Breaking capacity | 30 kA | |
| Version | microfuse | |
| Enclosure | glass tube | |
| Rated voltage (DC) | 1 kV |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | GB |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
