69.8321-23 | Stäubli Electrical Connectors

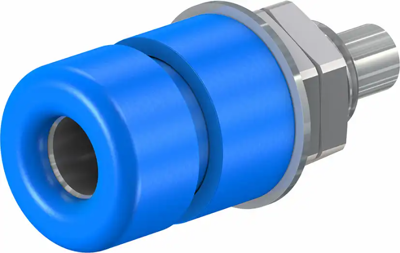

4 mm socket, solder connection, blue, 69.8321-23
Unit Price (€ / pc.)
1.1543 € *
Available: 22 pcs.
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
25 pcs.
1.0472 €
50 pcs.
0.9877 €
100 pcs.
0.9282 €
500 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket, 69.8321-23, Stäubli Electrical Connectors
This socket is made of machined brass and has a rigid, insulated body with a diameter of 4 mm. It can be easily mounted in predrilled panels using screws.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Connection | solder connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 20 A | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Version | socket | |
| Length | 22.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
