66.9854-21 | Stäubli Electrical Connectors

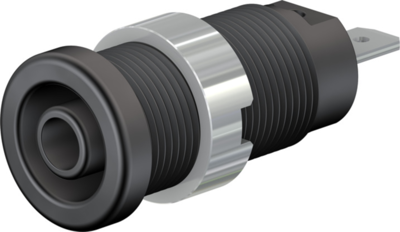

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, black, 66.9854-21

Order No.: 86F9001
EAN: 4099889679472
MPN:
66.9854-21
XEF-1RR SCHWARZ
66.9854-21 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, black, 66.9665-21
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, black, 66.9665-21
Order No.: 86F8998
Manufacturer: Stäubli Electrical Connectors
per pc. 2.9988 € *

4 mm Socket, 66.9854-21, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet. The socket consists of two insulated, semi-circular contacts, which are connected to each other when a plug is inserted (switch function). The socket is screwed into pre-drilled panels of plastic, metal, etc.

Connection: 2 × Flat connecting tab 4.8 mm × 0.8 mm.

Technical specifications
Colour black
Installation diameter 12.2 mm
contact surface nickel-plated
diameter 4 mm
Length 37 mm
Stackable No
Touch safe Yes
Version socket
Connection flat plug connection
Rated Voltage 1000 V
Rated current 24 A
Rated category CAT IV
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
