66.9584-21 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II, black, 66.9584-21
Unit Price (€ / pc.)
5.3550 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3550 €
25 pcs.
4.7243 €
50 pcs.
4.1412 €
100 pcs.
3.9746 €
500 pcs.
3.7366 €
*incl. VAT plus shipping costs
Subject to prior sale

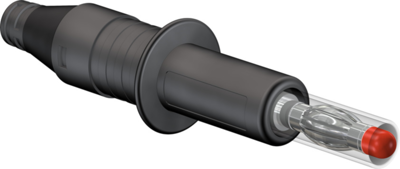

4 mm Plug, 66.9584-21, Stäubli Electrical Connectors
In-line Ø 4 mm plug with spring-loaded MULTILAM for selfassembly of test leads. With retractable sleeve to prevent accidental touching. As a result of the protective collar, the clearances and creepage distances allow test leads equipped with this plug also to be safely connected to older test instruments not yet fi tted with safety sockets up to 600 V, CAT II in conformity with the standards.
Connection: Screw connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 3.9 mm | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| Length | 71 mm | |
| Colour | black | |
| Rated category | CAT II | |
| Cable cross-section | 2.5 mm² | |
| Rated Voltage | 600 V | |
| Connection | screw connection | |
| Version | plug | |
| Stackable | No | |
| contact surface | nickel-plated | |
| Touch safe | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
