66.9328-20 | Stäubli Electrical Connectors

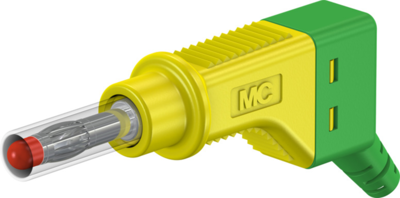

4 mm plug, screw connection, 2.5 mm², CAT II, yellow/green, 66.9328-20
Unit Price (€ / pc.)
5.8786 € *
Next delivery: 48 pcs. on 2025-06-06
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
25 pcs.
5.1527 €
100 pcs.
4.5220 €
500 pcs.
4.3673 €
1000 pcs.
4.0698 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Plug, 66.9328-20, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With retractable sleeve to prevent accidental touching. Screw connection.
Technical specifications
| max. Cable diameter | 3.9 mm | |
| Rated current | 32 A | |
| Rated category | CAT II | |
| Rated Voltage | 600 V | |
| Cable cross-section | 2.5 mm² | |
| Connection | screw connection | |
| Length | 59 mm | |
| contact surface | nickel-plated | |
| Colour | yellow/green | |
| Version | plug | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
