66.9155-26 | Stäubli Electrical Connectors
4 mm socket, screw connection, 2.5 mm², CAT II, purple, 66.9155-26
No longer available from manufacturer
Unit Price (€ / pc.)
2.7251 € *
Available: 94 pcs.
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
25 pcs.
2.4038 €
100 pcs.
2.1063 €
500 pcs.
2.0230 €
1000 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale

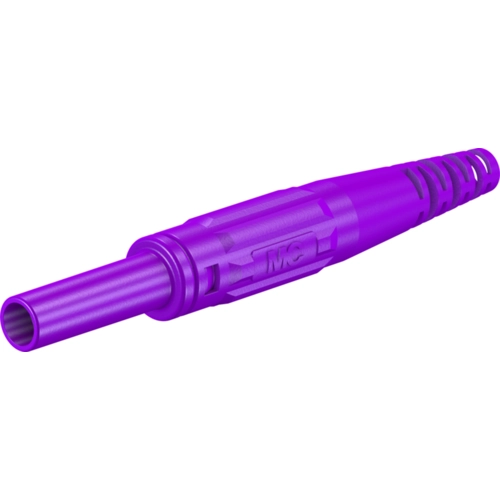

4 mm Socket, 66.9155-26, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Screw connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| max. Cable diameter | 3.9 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V | |
| Touch safe | Yes | |
| Connection | screw connection | |
| Length | 73 mm | |
| Rated category | CAT II | |
| Stackable | No | |
| Rated current | 32 A | |
| Colour | purple | |
| Version | socket | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
