66.9136-25 | Stäubli Electrical Connectors

4 mm socket, screw connection, mounting Ø 12.2 mm, CAT IV, green, 66.9136-25

Order No.: 86F9292
EAN: 4099889680133
MPN:
66.9136-25
XEG-1R GRÜN
66.9136-25 Stäubli Electrical Connectors Laboratory Connectors

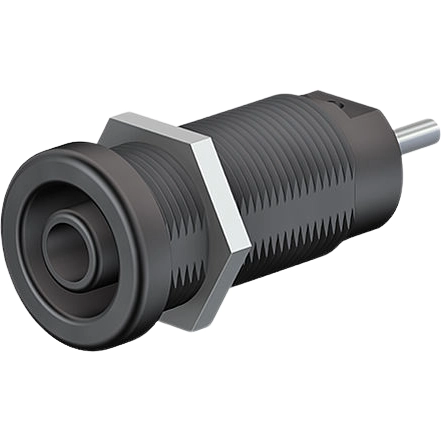

Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, green, 66.9665-25
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, green, 66.9665-25
Order No.: 86F9283
Manufacturer: Stäubli Electrical Connectors
per pc. 3.1535 € *

4 mm Socket, 66.9136-25, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The sockets are screwed into pre-drilled panels of plastic, metal, etc.

Connection: Threaded bolt M4.

Technical specifications
Rated Voltage 1000 V
Rated category CAT IV
Touch safe Yes
Connection screw connection
diameter 4 mm
Stackable No
Installation diameter 12.2 mm
contact surface nickel-plated
Rated current 20 A
Colour green
Length 38.5 mm
Version socket
Logistics
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
