66.9136-23 | Stäubli Electrical Connectors

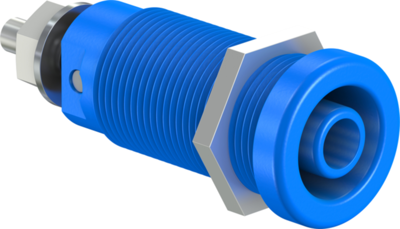

4 mm socket, screw connection, mounting Ø 12.2 mm, CAT IV, blue, 66.9136-23

Order No.: 86F9007

EAN: 4099889679533

MPN:

66.9136-23

XEG-1R BLAU

Image may differ

Key Specification:

Version socket

diameter 4 mm

Colour blue

Connection screw connection

contact surface nickel-plated

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

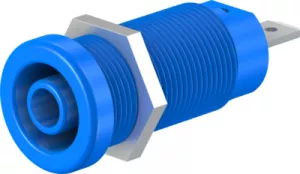

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, blue, 66.9665-23

Order No.: 86F9000

Manufacturer: Stäubli Electrical Connectors

per pc. 3.1535 € *

Go to product

*incl. VAT plus shipping costs

Description

4 mm Socket, 66.9136-23, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The sockets are screwed into pre-drilled panels of plastic, metal, etc.

Connection: Threaded bolt M4.

Technical specifications

Filter	Property	Value
	Connection	screw connection
	Colour	blue
	Rated current	20 A
	Touch safe	Yes
	Length	38.5 mm
	Stackable	No
	Rated category	CAT IV
	diameter	4 mm
	contact surface	nickel-plated
	Rated Voltage	1000 V
	Version	socket
	Installation diameter	12.2 mm
