66.9131-23 | Stäubli Electrical Connectors
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, blue, 66.9131-23
Unit Price (€ / pc.)
3.1059 € *
Available: 23 pcs.
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
25 pcs.
2.6537 €
100 pcs.
2.4514 €
500 pcs.
2.3324 €
1000 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

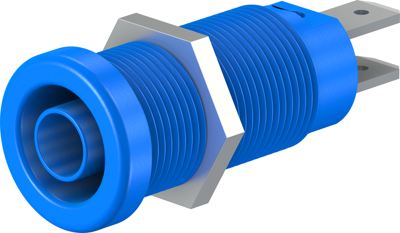

4 mm Socket, 66.9131-23, Stäubli Electrical Connectors
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Brass sheet. The socket consists of two insulated, semi-circular contacts, which are connected to each other when a plug is inserted (switch function). The socket is screwed into pre-drilled panels of plastic, metal, etc.
Connection: 2x Flat connecting tab 4.8 mm × 0.8 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | flat plug connection | |
| Colour | blue | |
| Rated current | 20 A | |
| Touch safe | Yes | |
| Length | 37 mm | |
| Stackable | No | |
| Rated category | CAT IV | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V | |
| Version | socket | |
| Installation diameter | 12.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
