66.3020-28 | Stäubli Electrical Connectors
4 mm panel socket, threaded bolt, mounting Ø 12.1 mm, CAT III, CAT IV, gray, 66.3020-28
Unit Price (€ / pc.)
2.5347 € *
Next delivery: 13 pcs. on 2025-06-17
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
20 pcs.
2.3324 €
100 pcs.
2.1896 €
500 pcs.
2.0468 €
1000 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale

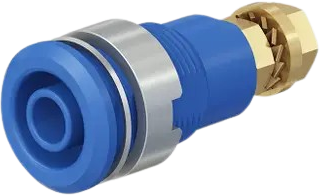

Panel-mount socket, 66.3020-28, Stäubli Electrical Connectors

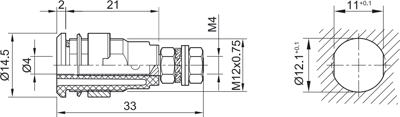

The 66.3020-28 is a panel-mount socket accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Technical specifications
| Rated current | 32 A | |
| Rated category | CAT III, CAT IV | |
| Installation diameter | 12.1 mm | |
| Rated Voltage | 1000 V/600 V | |
| Connection | threaded bolt | |
| Length | 33 mm | |
| contact surface | gold-plated | |
| Colour | gray | |
| Version | panel socket | |
| Touch safe | No | |
| diameter | 4 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
