66.3020-24 | Stäubli Electrical Connectors
4 mm panel socket, threaded bolt, mounting Ø 12.1 mm, CAT III, CAT IV, yellow, 66.3020-24
Unit Price (€ / pc.)
2.6656 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.67 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6656 €
20 pcs.
2.4514 €
100 pcs.
2.2967 €
500 pcs.
2.1539 €
1000 pcs.
2.0111 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel-mount socket, 66.3020-24, Stäubli Electrical Connectors

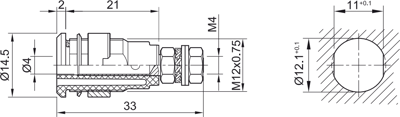

The 66.3020-24 is a panel-mount socket accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated category | CAT III, CAT IV | |
| contact surface | gold-plated | |
| Version | panel socket | |
| Touch safe | No | |
| Length | 33 mm | |
| Connection | threaded bolt | |
| Rated current | 32 A | |
| Rated Voltage | 1000 V/600 V | |
| diameter | 4 mm | |
| Colour | yellow | |
| Stackable | No | |
| Installation diameter | 12.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
