66.2054-21 | Stäubli Electrical Connectors
4 mm socket, screw connection, 2.5 mm², mounting Ø 9.6 mm, CAT II/CAT III, black, 66.2054-21
Unit Price (€ / pc.)
2.7013 € *
Available: 49 pcs.
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
25 pcs.
2.5585 €
50 pcs.
2.4276 €
100 pcs.
2.2729 €
500 pcs.
2.0587 €
*incl. VAT plus shipping costs
Subject to prior sale

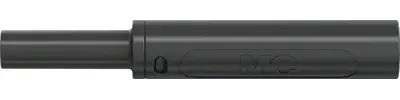

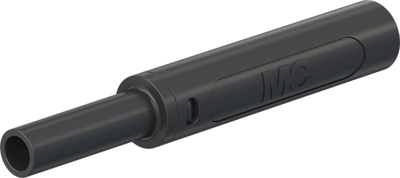

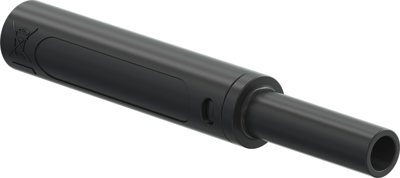

Safety socket, 66.2054-21, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Screw connection.
Technical specifications
| contact surface | nickel-plated | |
| Rated Voltage | 1000 V/600 V | |
| Length | 65 mm | |
| Colour | black | |
| Rated current | 32 A | |
| Connection | screw connection | |
| Stackable | No | |
| Installation diameter | 9.6 mm | |
| diameter | 4 mm | |
| Rated category | CAT II/CAT III | |
| max. Cable diameter | 4.6 mm | |
| Cable cross-section | 2.5 mm² | |
| Version | socket |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
