66.2053-21 | Stäubli Electrical Connectors
4 mm socket, crimp connection, 1.0 mm², mounting Ø 9.6 mm, CAT II/CAT III, black, 66.2053-21
Order No.: 22F7693
EAN: 4099891973476
MPN:
66.2053-21
SBCR10-4A-39 SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.3086 €
50 pcs.
2.1896 €
100 pcs.
2.0468 €
500 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale

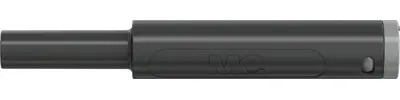

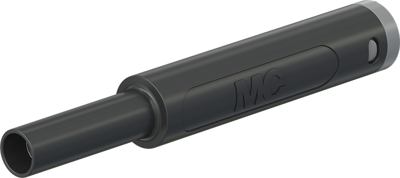

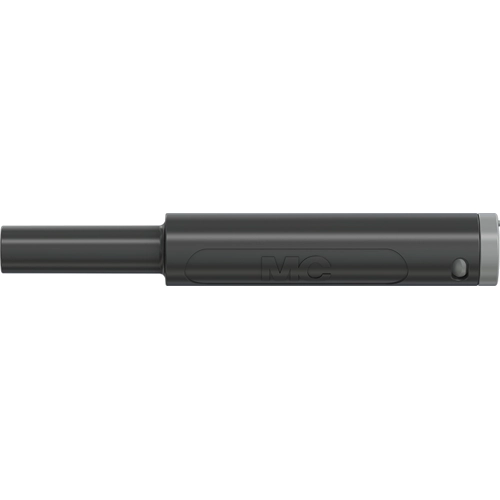

Safety socket, 66.2053-21, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Crimp connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 3.9 mm | |
| Rated current | 19 A | |
| Rated category | CAT II/CAT III | |
| Installation diameter | 9.6 mm | |
| Rated Voltage | 1000 V/600 V | |
| Cable cross-section | 1.0 mm² | |
| Connection | crimp connection | |
| Length | 65 mm | |
| contact surface | gold-plated | |
| Colour | black | |
| Version | socket | |
| diameter | 4 mm | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
