66.2050-26 | Stäubli Electrical Connectors

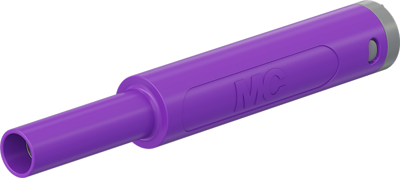

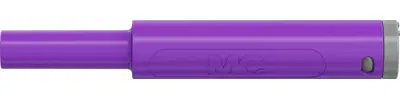

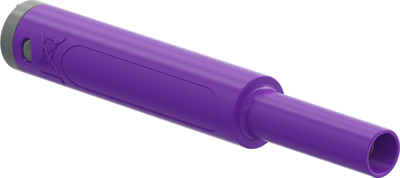

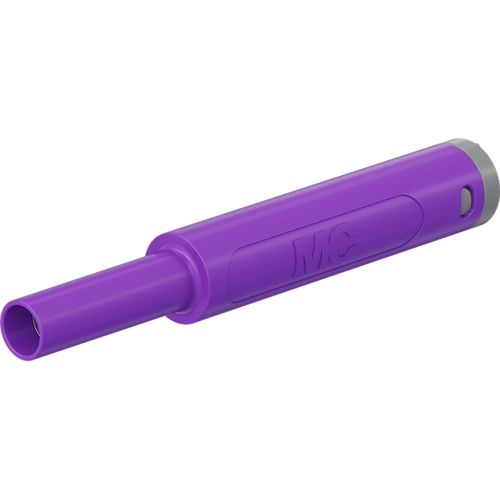

4 mm socket, solder connection, 2.5 mm², mounting Ø 9.6 mm, CAT II/CAT III, purple, 66.2050-26
Unit Price (€ / pc.)
1.7136 € *
Available: 0 pcs.
Next delivery: 85 pcs. on 2025-05-09
Leadtime: 4 Weeks **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.6184 €
50 pcs.
1.5232 €
100 pcs.
1.4399 €
500 pcs.
1.3090 €
*incl. VAT plus shipping costs
**Subject to prior sale

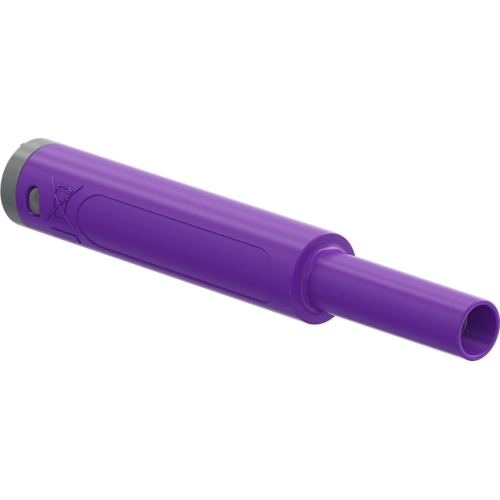

Safety socket, 66.2050-26, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Solder connection.
Technical specifications
| Connection | Lötanschluss | |
| Version | Buchse | |
| Rated Voltage | 1000 V/600 V | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| Installation diameter | 9.6 mm | |
| Colour | violett | |
| contact surface | vernickelt | |
| Length | 65 mm | |
| Cable cross-section | 2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated category | CAT II/CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
