66.2047-29 | Stäubli Electrical Connectors

4 mm plug, screw connection, 2.5 mm², CAT II/CAT III, white, 66.2047-29

Order No.: 22F7661
EAN: 4099891973155
MPN:
66.2047-29
SAM-4N-46 WEISS

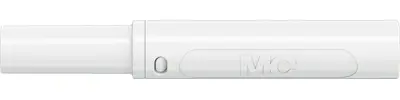

66.2047-29 Stäubli Electrical Connectors Laboratory Connectors Image 1

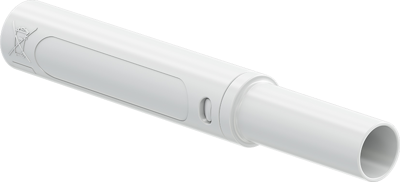

66.2047-29 Stäubli Electrical Connectors Laboratory Connectors Image 2

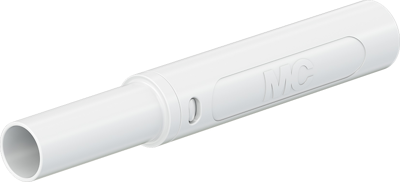

66.2047-29 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.9988 € *
Available: 10 pcs.
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
25 pcs.
2.7727 €
50 pcs.
2.5466 €
100 pcs.
2.4038 €
500 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale

Safety connector, 66.2047-29, Stäubli Electrical Connectors

In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.

Technical specifications
Filter Property Value
max. Cable diameter 4.6 mm
Rated current 32 A
contact surface nickel-plated
Version plug
Colour white
Rated category CAT II/CAT III
Stackable No
Connection screw connection
Rated Voltage 1000 V/600 V
Length 65 mm
Cable cross-section 2.5 mm²
diameter 4 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
