66.2047-23 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II/CAT III, blue, 66.2047-23
Unit Price (€ / pc.)
2.9988 € *
Available: 24 pcs.
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
25 pcs.
2.7727 €
50 pcs.
2.5466 €
100 pcs.
2.4038 €
500 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale

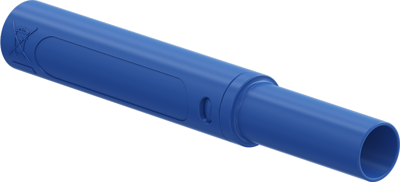

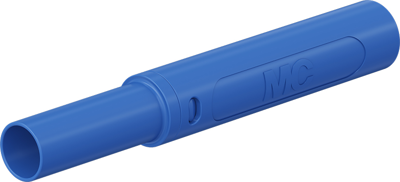

Safety connector, 66.2047-23, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Stackable | No | |
| Version | plug | |
| diameter | 4 mm | |
| Cable cross-section | 2.5 mm² | |
| contact surface | nickel-plated | |
| Length | 65 mm | |
| Rated current | 32 A | |
| Rated category | CAT II/CAT III | |
| Rated Voltage | 1000 V/600 V | |
| max. Cable diameter | 4.6 mm | |
| Colour | blue | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
