66.2047-22 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II/CAT III, red, 66.2047-22
Unit Price (€ / pc.)
2.8560 € *
Available: 67 pcs.
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
25 pcs.
2.6418 €
50 pcs.
2.4276 €
100 pcs.
2.2848 €
500 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

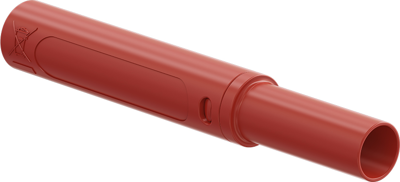

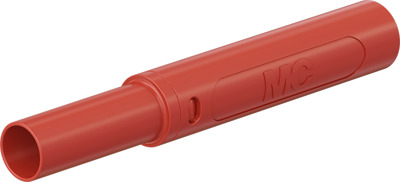

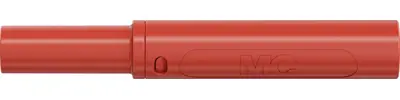

Safety connector, 66.2047-22, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.
Technical specifications
| Rated current | 32 A | |
| Length | 65 mm | |
| Connection | screw connection | |
| Colour | red | |
| diameter | 4 mm | |
| Rated category | CAT II/CAT III | |
| Cable cross-section | 2.5 mm² | |
| Stackable | No | |
| Version | plug | |
| max. Cable diameter | 4.6 mm | |
| Rated Voltage | 1000 V/600 V | |
| contact surface | nickel-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
