66.2046-29 | Stäubli Electrical Connectors
4 mm plug, crimp connection, 2.5 mm², CAT II/CAT III, white, 66.2046-29
Unit Price (€ / pc.)
3.0583 € *
Available: 98 pcs.
Total Price:
3.06 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0583 €
10 pcs.
2.8322 €
50 pcs.
2.6061 €
100 pcs.
2.4514 €
500 pcs.
2.2967 €
*incl. VAT plus shipping costs
Subject to prior sale

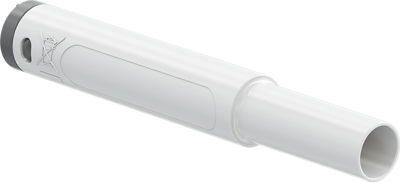

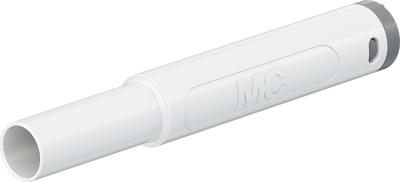

Safety connector, 66.2046-29, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Crimp connection.
Technical specifications
| Rated category | CAT II/CAT III | |
| Cable cross-section | 2.5 mm² | |
| Stackable | No | |
| contact surface | gold-plated | |
| Connection | crimp connection | |
| Colour | white | |
| Rated current | 32 A | |
| max. Cable diameter | 4.6 mm | |
| Rated Voltage | 1000 V/600 V | |
| Length | 65 mm | |
| diameter | 4 mm | |
| Version | plug |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
