66.2041-23 | Stäubli Electrical Connectors

4 mm plug, solder connection, 2.5 mm², CAT II/CAT III, blue, 66.2041-23

Order No.: 22F7605
EAN: 4099891972592
MPN:
66.2041-23
SAL-4A-39-TW BLAU

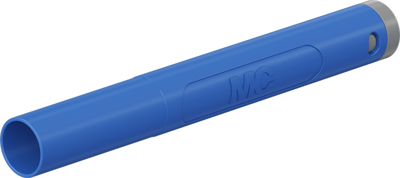

66.2041-23 Stäubli Electrical Connectors Laboratory Connectors Image 1

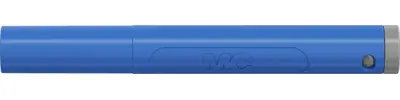

66.2041-23 Stäubli Electrical Connectors Laboratory Connectors Image 2
66.2041-23 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.3919 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3919 €
10 pcs.
2.2134 €
50 pcs.
2.0349 €
100 pcs.
1.9159 €
500 pcs.
1.7969 €
*incl. VAT plus shipping costs
Subject to prior sale

Safety connector, 66.2041-23, Stäubli Electrical Connectors

In-line, extra slim, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Solder connection.

Technical specifications
contact surface gold-plated
Rated Voltage 1000 V/600 V
Length 65 mm
Colour blue
Rated current 32 A
Connection solder connection
Stackable No
diameter 4 mm
Rated category CAT II/CAT III
max. Cable diameter 3.9 mm
Cable cross-section 2.5 mm²
Version plug
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
