66.2041-22 | Stäubli Electrical Connectors

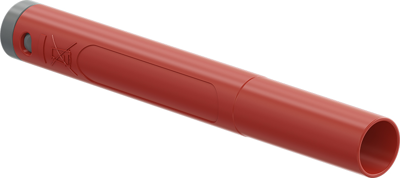

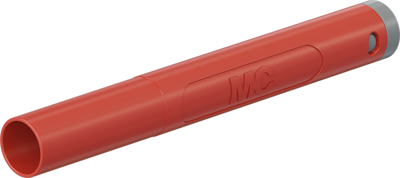

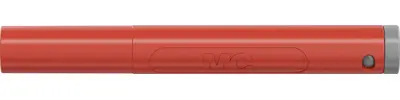

4 mm plug, solder connection, 2.5 mm², CAT II/CAT III, red, 66.2041-22
Unit Price (€ / pc.)
2.5109 € *
Available: 120 pcs.
Total Price:
2.51 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5109 €
10 pcs.
2.3205 €
50 pcs.
2.1420 €
100 pcs.
2.0111 €
500 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety connector, 66.2041-22, Stäubli Electrical Connectors
In-line, extra slim, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Solder connection.
Technical specifications
| Rated category | CAT II/CAT III | |
| Connection | solder connection | |
| Cable cross-section | 2.5 mm² | |
| diameter | 4 mm | |
| Version | plug | |
| Colour | red | |
| Rated Voltage | 1000 V/600 V | |
| Stackable | No | |
| Length | 65 mm | |
| max. Cable diameter | 3.9 mm | |
| contact surface | gold-plated | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
