4 mm plug, screw connection, 2.5 mm², CAT II, CAT III, white, 66.2025-29
Unit Price (€ / pc.)
4.0460 € *
Available: 55 pcs.
Next delivery: 100 pcs. on 2025-06-06
Leadtime: On Request **
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.5700 €
100 pcs.
3.1059 €
500 pcs.
2.9869 €
1000 pcs.
2.7965 €
*incl. VAT plus shipping costs
**Subject to prior sale

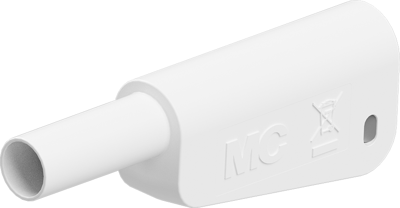

Single plug, 66.2025-29, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Gold plated version. Screw connection.
Technical specifications
| Colour | white | |
| contact surface | gold-plated | |
| max. Cable diameter | 4.6 mm | |
| diameter | 4 mm | |
| Length | 56.4 mm | |
| Cable cross-section | 2.5 mm² | |
| Stackable | Yes | |
| Touch safe | Yes | |
| Version | plug | |
| Connection | screw connection | |
| Rated Voltage | 1000 V/600 V | |
| Rated current | 32 A | |
| Rated category | CAT II, CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
