66.2024-24 | Stäubli Electrical Connectors

4 mm plug, screw connection, 2.5 mm², CAT II, CAT III, yellow, 66.2024-24

Order No.: 22F7170
EAN: 4255674607895
MPN:
66.2024-24
SLM-4N-46 GELB
66.2024-24 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.2725 € *
Available: 98 pcs.
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
2.8917 €
100 pcs.
2.5228 €
500 pcs.
2.4276 €
1000 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale

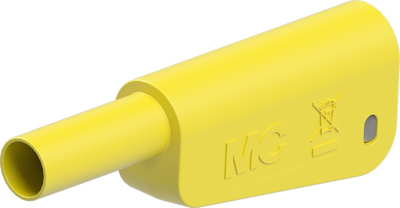

Single plug, 66.2024-24, Stäubli Electrical Connectors

Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.

Technical specifications
Rated category CAT II, CAT III
Connection screw connection
Cable cross-section 2.5 mm²
diameter 4 mm
Version plug
Colour yellow
Rated Voltage 1000 V/600 V
Touch safe Yes
Stackable Yes
Length 56.4 mm
max. Cable diameter 4.6 mm
contact surface nickel-plated
Rated current 32 A
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 100 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
