66.2021-22 | Stäubli Electrical Connectors
4 mm plug, screw connection, 1.0 mm², CAT II, CAT III, red, 66.2021-22
Unit Price (€ / pc.)
3.7366 € *
Next delivery: 83 pcs. on 2025-11-13
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.4391 €
100 pcs.
3.2130 €
500 pcs.
3.0226 €
1000 pcs.
2.8084 €
*incl. VAT plus shipping costs
Subject to prior sale

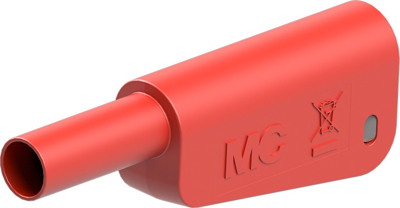

Single plug, 66.2021-22, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Screw connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 3.9 mm | |
| Colour | red | |
| Rated current | 19 A | |
| Connection | screw connection | |
| diameter | 4 mm | |
| Length | 56.4 mm | |
| Rated Voltage | 1000 V/600 V | |
| Cable cross-section | 1.0 mm² | |
| contact surface | gold-plated | |
| Rated category | CAT II, CAT III | |
| Stackable | Yes | |
| Touch safe | Yes | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
