65.9194-25 | Stäubli Electrical Connectors
2 mm socket, round plug connection, mounting Ø 8.6 mm, CAT III, green, 65.9194-25
Unit Price (€ / pc.)
2.6537 € *
Available: 74 pcs.
Leadtime: On Request **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
25 pcs.
2.2729 €
100 pcs.
2.0944 €
500 pcs.
1.9873 €
1000 pcs.
1.8088 €
*incl. VAT plus shipping costs
**Subject to prior sale

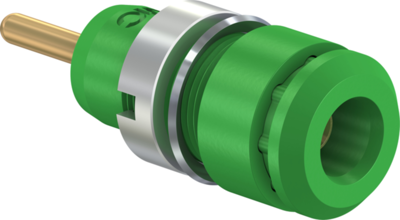

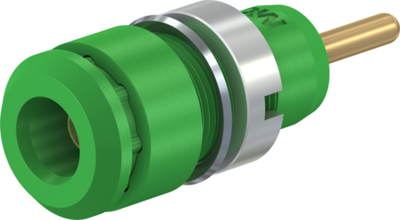

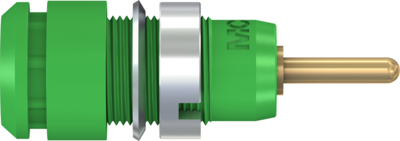

2 mm Socket, 65.9194-25, Stäubli Electrical Connectors
Insulated, rigid, accepting spring-loaded Ø 2 mm plugs with rigid insulating sleeve. The socket is surface-mounted or assembled flush into pre-drilled panels of plastic, metal, etc. Connection: Flat connecting tab 2.8 mm x 0.8 mm.
Technical specifications
| Colour | green | |
| Installation diameter | 8.6 mm | |
| contact surface | gold-plated | |
| diameter | 2 mm | |
| Length | 29 mm | |
| Stackable | No | |
| Touch safe | Yes | |
| Version | socket | |
| Connection | round plug connection | |
| Rated Voltage | 600 V | |
| Rated current | 10 A | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 25 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
