65.9194-24 | Stäubli Electrical Connectors

2 mm socket, round plug connection, mounting Ø 8.6 mm, CAT III, yellow, 65.9194-24

Order No.: 86F8777
EAN: 842640112732
MPN:
65.9194-24
SLB-2R GELB

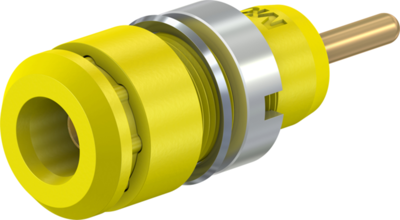

65.9194-24 Stäubli Electrical Connectors Laboratory Connectors Image 1

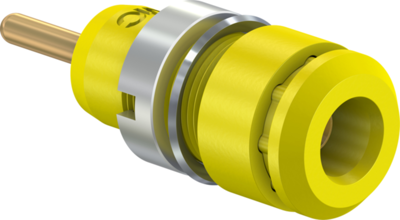

65.9194-24 Stäubli Electrical Connectors Laboratory Connectors Image 2

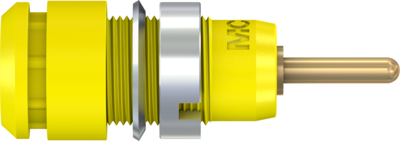

65.9194-24 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.7846 € *
Available: 53 pcs.
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
25 pcs.
2.3919 €
50 pcs.
2.2015 €
100 pcs.
2.0825 €
500 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale

2 mm Socket, 65.9194-24, Stäubli Electrical Connectors

Insulated, rigid, accepting spring-loaded Ø 2 mm plugs with rigid insulating sleeve. The socket is surface-mounted or assembled flush into pre-drilled panels of plastic, metal, etc. Connection: Flat connecting tab 2.8 mm x 0.8 mm.

Technical specifications
Colour yellow
Installation diameter 8.6 mm
contact surface gold-plated
diameter 2 mm
Length 29 mm
Stackable No
Touch safe Yes
Version socket
Connection round plug connection
Rated Voltage 600 V
Rated current 10 A
Rated category CAT III
Logistics
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
