65.3332-25 | Stäubli Electrical Connectors
2 mm panel socket, solder connection, mounting Ø 10.5 mm, green, 65.3332-25
Unit Price (€ / pc.)
4.2007 € *
Available: 40 pcs.
Leadtime: On Request **
Total Price:
4.20 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2007 €
10 pcs.
3.9746 €
50 pcs.
3.7366 €
100 pcs.
3.4986 €
500 pcs.
3.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale

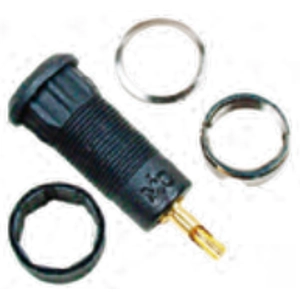

Installation socket, 65.3332-25, Stäubli Electrical Connectors
The 65.3332-25 is a insulated gold-plated Ø 2 mm panel termi-nal with spring-loaded MULTILAM, accepting rigid Ø 2 mm plugs with rigid insulating sleeve. The terminal is surface-mounted or assembled flush into predrilled panels of plastic, metal etc.
Technical specifications
| Connection | Lötanschluss | |
| Version | Einbaubuchse | |
| Touch safe | Yes | |
| diameter | 2 mm | |
| Installation diameter | 10.5 mm | |
| Colour | grün | |
| contact surface | vergoldet | |
| Length | 29 mm | |
| Stackable | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
