65.3321-25 | Stäubli Electrical Connectors
1.5 mm socket, solder connection, 0.25-0.5 mm², green, 65.3321-25
Unit Price (€ / pc.)
3.8318 € *
Available: 24 pcs.
Leadtime: On Request **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.6295 €
50 pcs.
3.4153 €
100 pcs.
3.2011 €
500 pcs.
2.9750 €
*incl. VAT plus shipping costs
**Subject to prior sale

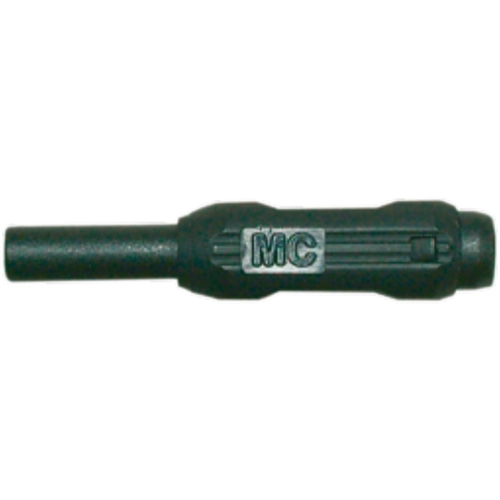

Plug connector, 65.3321-25, Stäubli Electrical Connectors
The 65.3321-25 is a in-line, gold-plated Ø 1.5 mm socket with spring-loaded MULTILAM for self-assembly of connecting leads (compatible for mating with terminals such as MEB1,5-R and ML- B1,5-R). The insulating material is suitable for steam sterilization.

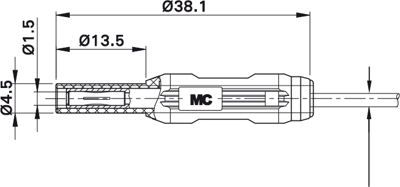

Technical specifications
| Connection | Lötanschluss | |
| Version | Buchse | |
| Touch safe | Yes | |
| diameter | 1.5 mm | |
| Colour | grün | |
| contact surface | vergoldet | |
| Length | 38.1 mm | |
| Cable cross-section | 0,25-0,5 mm² | |
| max. Cable diameter | 2.1 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
