65.3321-23 | Stäubli Electrical Connectors
1.5 mm socket, solder connection, 0.25-0.5 mm², blue, 65.3321-23
Unit Price (€ / pc.)
4.0222 € *
Available: 41 pcs.
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.8080 €
50 pcs.
3.5819 €
100 pcs.
3.3558 €
500 pcs.
3.1297 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug connector, 65.3321-23, Stäubli Electrical Connectors

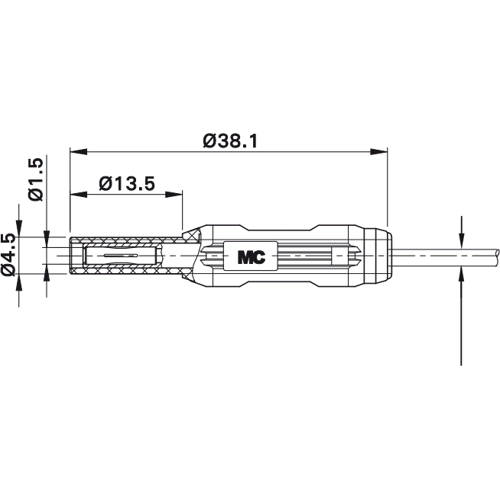

The 65.3321-23 is a in-line, gold-plated Ø 1.5 mm socket with spring-loaded MULTILAM for self-assembly of connecting leads (compatible for mating with terminals such as MEB1,5-R and ML- B1,5-R). The insulating material is suitable for steam sterilization.
Technical specifications
| Length | 38.1 mm | |
| Colour | blue | |
| Touch safe | Yes | |
| Stackable | No | |
| Cable cross-section | 0.25-0.5 mm² | |
| Connection | solder connection | |
| diameter | 1.5 mm | |
| Version | socket | |
| max. Cable diameter | 2.1 mm | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
