64.9325-25 | Stäubli Electrical Connectors
4 mm plug, screw connection, 1.0 mm², green, 64.9325-25
Unit Price (€ / pc.)
6.1047 € *
Available: 14 pcs.
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1047 €
25 pcs.
5.3669 €
100 pcs.
4.7124 €
500 pcs.
4.5339 €
1000 pcs.
4.2364 €
*incl. VAT plus shipping costs
Subject to prior sale

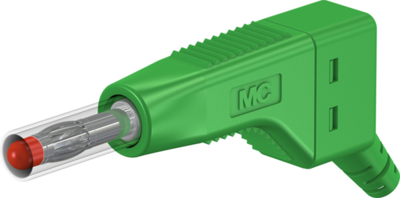

4 mm Plug, 64.9325-25, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching. Screw connection.
Technical specifications
| Colour | green | |
| contact surface | nickel-plated | |
| max. Cable diameter | 3.9 mm | |
| diameter | 4 mm | |
| Length | 59 mm | |
| Cable cross-section | 1.0 mm² | |
| Stackable | Yes | |
| Touch safe | Yes | |
| Version | plug | |
| Connection | screw connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
