64.9201-26 | Stäubli Electrical Connectors

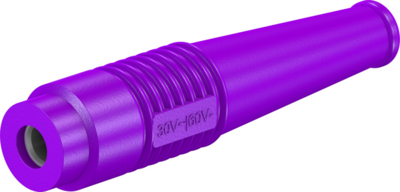

4 mm jack, solder connection, 2.5 mm², purple, 64.9201-26

Order No.: 86F8213
EAN: 4099889677065
MPN:
64.9201-26
K-41 VIOLETT
64.9201-26 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm socket, solder connection, 2.5 mm², mounting Ø 8 mm, purple, 64.2060-26
4 mm socket, solder connection, 2.5 mm², mounting Ø 8 mm, purple, 64.2060-26
Order No.: 22F7556
Manufacturer: Stäubli Electrical Connectors
per pc. 1.7255 € *

4 mm Jack, 64.9201-26, Stäubli Electrical Connectors

Ø 4 mm rigid, for self-assembly of test leads.

Technical specifications
Filter Property Value
max. Cable diameter 3.9 mm
Rated current 32 A
Cable cross-section 2.5 mm²
Touch safe No
Version jack
Connection solder connection
Length 50 mm
diameter 4 mm
contact surface nickel-plated
Colour purple
Rated Voltage 30 VAC/60 VDC
Logistics
Property Value
Original Packaging Bag with 25 pieces
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
