64.9200-21 | Stäubli Electrical Connectors
4 mm plug, solder connection, black, 64.9200-21
Order No.: 86F9381
EAN: 4099891758660
MPN:
64.9200-21
L-41 SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, solder connection, 2.5 mm², black, 64.2050-21
Order No.: 22F7500
Manufacturer: Stäubli Electrical Connectors
per pc. 1.5589 € *

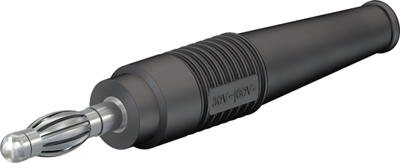

Plug, 64.9200-21, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. Solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 4 mm | |
| Colour | black | |
| Connection | solder connection | |
| contact surface | nickel-plated | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 20 A | |
| Touch safe | No | |
| Stackable | No | |
| Length | 69 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
