64.9199-24 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², yellow, 64.9199-24
No longer available from manufacturer
Unit Price (€ / pc.)
2.2015 € *
Available: 18 pcs.
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
25 pcs.
1.8683 €
100 pcs.
1.7255 €
500 pcs.
1.6422 €
1000 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale

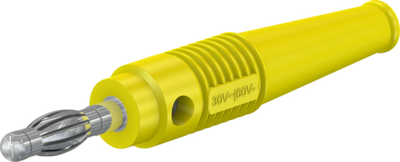

4 mm Plug, 64.9199-24, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 69 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection | solder connection | |
| Colour | yellow | |
| Version | plug | |
| Rated current | 32 A | |
| contact surface | nickel-plated | |
| Stackable | No | |
| Cable cross-section | 2.5 mm² | |
| diameter | 4 mm | |
| max. Cable diameter | 3.9 mm | |
| Touch safe | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
