64.2063-26 | Stäubli Electrical Connectors

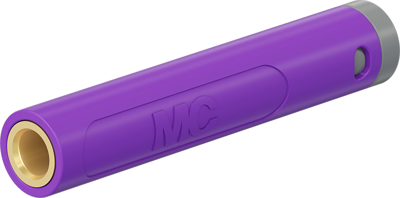

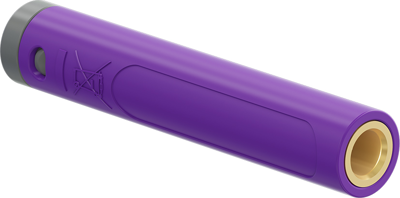

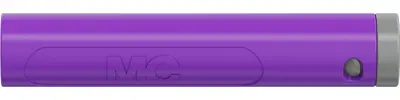

4 mm socket, crimp connection, 1.0 mm², mounting Ø 8 mm, purple, 64.2063-26
Order No.: 22F7580
EAN: 4099891968069
MPN:
64.2063-26
BCR10-4A-39 VIOLETT
Series: Test & Measurement
Unit Price (€ / pc.)
2.6656 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.67 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6656 €
10 pcs.
2.5347 €
50 pcs.
2.3800 €
100 pcs.
2.2491 €
500 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket, 64.2063-26, Stäubli Electrical Connectors
In-line, Ø 4 mm rigid for self-assembly of test leads. Crimp connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Installation diameter | 8 mm | |
| Length | 43.5 mm | |
| Colour | purple | |
| contact surface | gold-plated | |
| Cable cross-section | 1.0 mm² | |
| Stackable | No | |
| Connection | crimp connection | |
| Rated Voltage | 30 V/60 V | |
| max. Cable diameter | 3.9 mm | |
| Rated current | 19 A | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
