64.1042-26 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², purple, 64.1042-26
Unit Price (€ / pc.)
1.8207 € *
Available: 20 pcs.
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.5470 €
100 pcs.
1.4399 €
500 pcs.
1.3566 €
1000 pcs.
1.2614 €
*incl. VAT plus shipping costs
Subject to prior sale

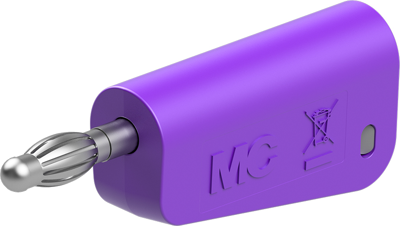

Single plug, 64.1042-26, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 54.3 mm | |
| Version | plug | |
| Stackable | Yes | |
| Connection | solder connection | |
| diameter | 4 mm | |
| Cable cross-section | 2.5 mm² | |
| contact surface | nickel-plated | |
| Touch safe | No | |
| max. Cable diameter | 3.6 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Colour | purple | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
