64.1041-20 | Stäubli Electrical Connectors
4 mm plug, screw connection, 1.0 mm², yellow/green, 64.1041-20
Unit Price (€ / pc.)
3.1892 € *
Available: 80 pcs.
Total Price:
3.19 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1892 €
10 pcs.
2.7965 €
100 pcs.
2.4633 €
500 pcs.
2.3800 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale

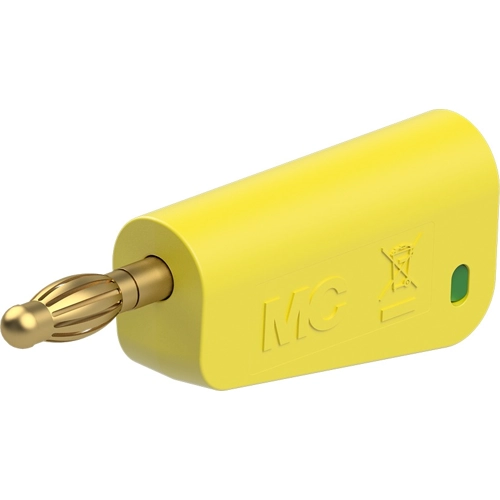

Single plug, 64.1041-20, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Screw connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.0 mm² | |
| diameter | 4 mm | |
| Length | 54.3 mm | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Connection | screw connection | |
| max. Cable diameter | 3 mm | |
| Colour | yellow/green | |
| Version | plug | |
| Stackable | Yes | |
| Rated current | 19 A | |
| Rated Voltage | 30 VAC/60 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
