64.1040-27 | Stäubli Electrical Connectors

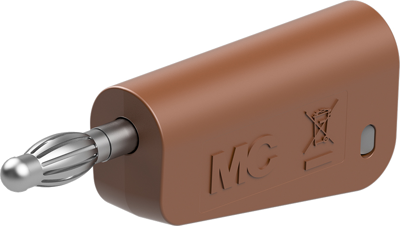

4 mm plug, screw connection, 1.0 mm², brown, 64.1040-27
Unit Price (€ / pc.)
2.4395 € *
Available: 77 pcs.
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.0706 €
100 pcs.
1.9159 €
500 pcs.
1.8326 €
1000 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale
Single plug, 64.1040-27, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Screw connection.
Technical specifications
| Colour | brown | |
| contact surface | nickel-plated | |
| max. Cable diameter | 3 mm | |
| diameter | 4 mm | |
| Length | 54.3 mm | |
| Cable cross-section | 1.0 mm² | |
| Stackable | Yes | |
| Touch safe | No | |
| Version | plug | |
| Connection | screw connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
