64.1038-23 | Stäubli Electrical Connectors

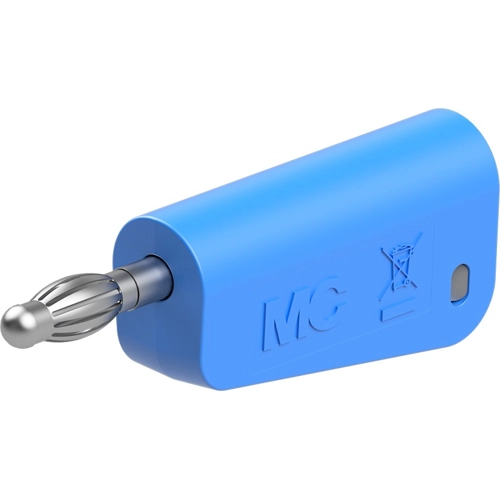

4 mm plug, solder connection, 1.0 mm², blue, 64.1038-23
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.4994 €
100 pcs.
1.4042 €
500 pcs.
1.3209 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale
Single plug, 64.1038-23, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| contact surface | nickel-plated | |
| Length | 54.3 mm | |
| Touch safe | No | |
| max. Cable diameter | 2.7 mm | |
| diameter | 4 mm | |
| Stackable | Yes | |
| Cable cross-section | 1.0 mm² | |
| Colour | blue | |
| Connection | solder connection | |
| Rated current | 19 A | |
| Rated Voltage | 30 VAC/60 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
